Acknowledgements

• This project is based on the AddressBook-Level3 project created by the SE-EDU initiative.
• Libraries used include JavaFX, Jackson, and JUnit 5.

Setting up, getting started

Refer to the guide Setting up and getting started.

Design

Tip: The .puml files used to create diagrams are in this document docs/diagrams folder. Refer to the PlantUML Tutorial at se-edu/guides to learn how to create and edit diagrams.

Architecture

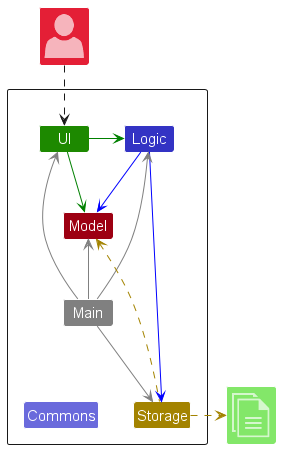

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app’s work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

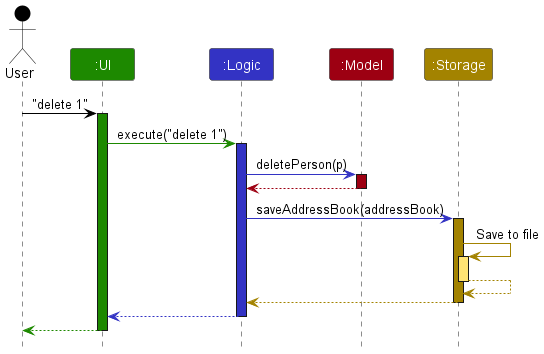

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

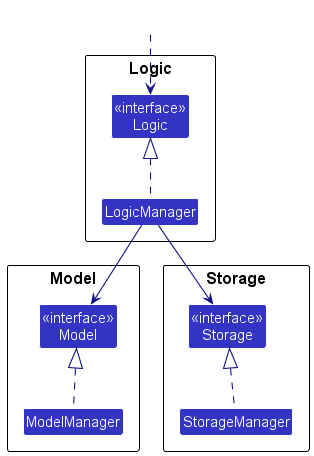

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

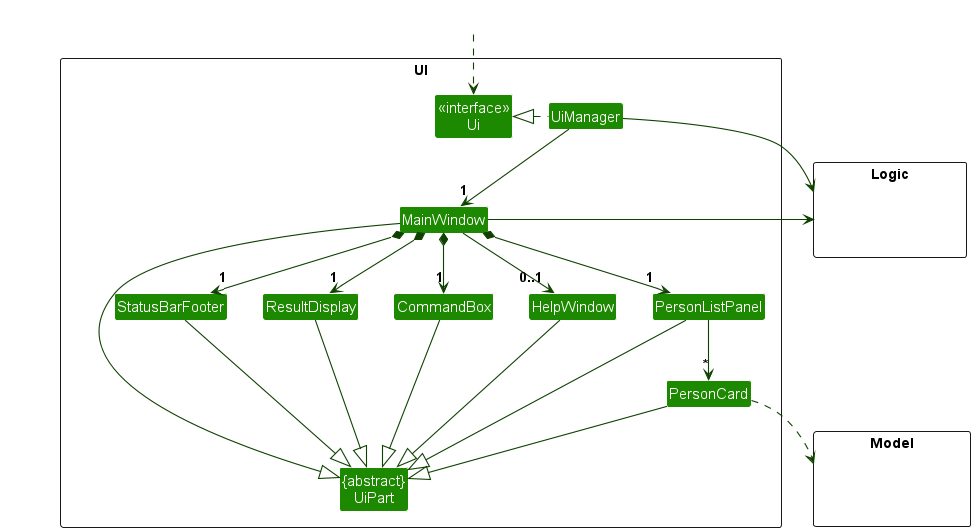

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

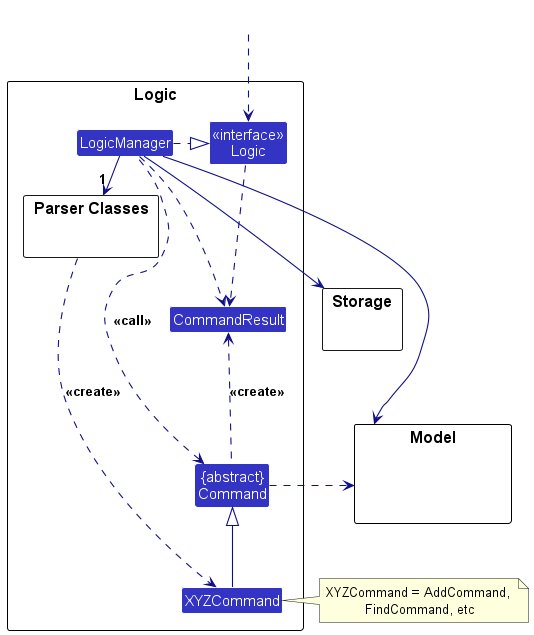

Here’s a (partial) class diagram of the Logic component:

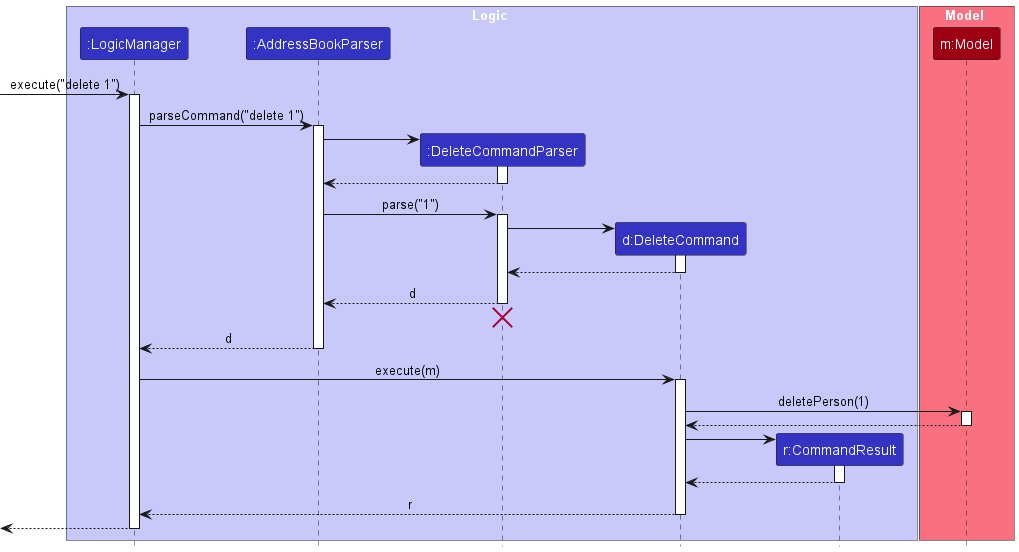

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

Note: The lifeline for DeleteCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline continues till the end of diagram.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a person).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

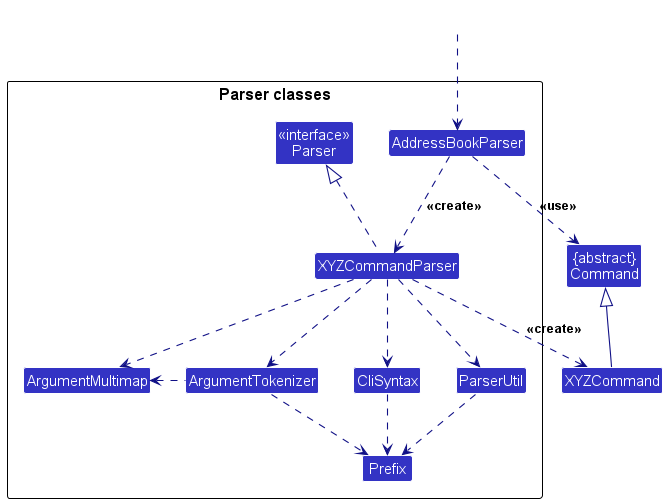

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.
• Command words are case-insensitive. AddressBookParser lowercases the command word before dispatching to the matching parser, so ADD, Add, and add are all treated identically. Commands such as find and help additionally normalise their arguments — find keyword matching uses StringUtil#containsWordIgnoreCase, and HelpCommandParser lowercases the target command word before looking it up in HelpCommand#COMMAND_USAGES. As a result, Help ADD, help Add, and help add all return the usage for the add command.

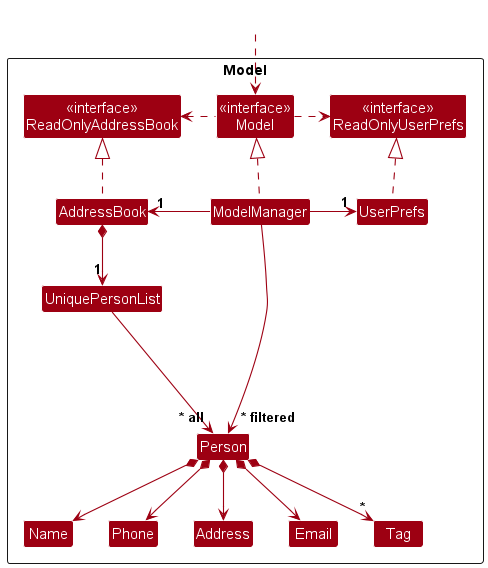

Model component

API : Model.java

The Model component,

• stores the address book data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores the currently ‘selected’ Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

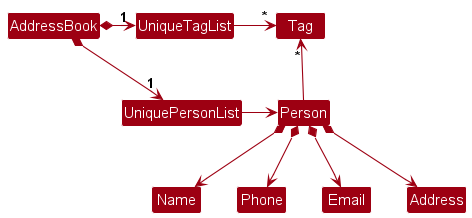

Note: An alternative (arguably, a more OOP) model is given below. It has a Tag list in the AddressBook, which Person references. This allows AddressBook to only require one Tag object per unique tag, instead of each Person needing their own Tag objects.

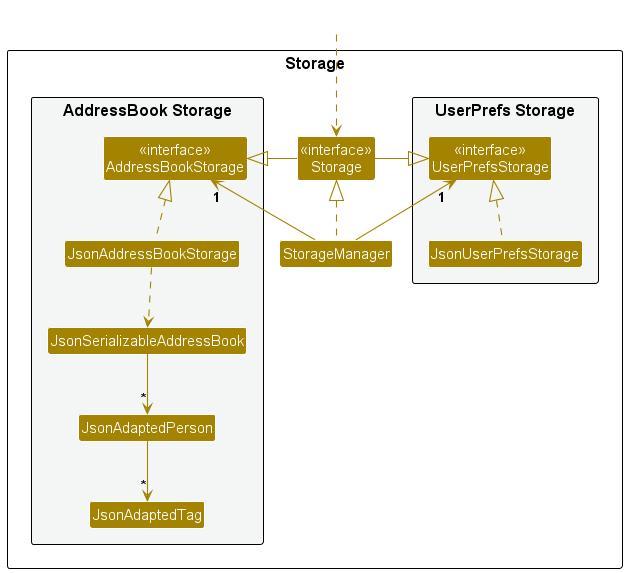

Storage component

API : Storage.java

The Storage component,

• can save both address book data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

Implementation

This section describes some noteworthy details on how certain features are implemented.

Undo/Redo feature

Implementation

The undo/redo mechanism uses a simplified snapshot approach. Instead of maintaining a full version history, ModelManager stores up to two snapshots of the address book:

• previousAddressBook – a copy of the address book state before the most recent mutating command (used by undo)
• redoAddressBook – a copy of the address book state before the most recent undo (used by redo)

These are exposed in the Model interface as:

• Model#saveCurrentState() – Saves a snapshot of the current address book for potential undo.
• Model#canUndoAddressBook() – Returns true if there is a saved previous state.
• Model#undoAddressBook() – Restores the address book to the previous state.
• Model#canRedoAddressBook() – Returns true if there is a saved redo state.
• Model#redoAddressBook() – Restores the address book to the state before the most recent undo.

The snapshot saving is handled in LogicManager#execute(), which calls Model#saveCurrentState() only before executing a mutating command. Read-only commands (help, list, find, filter, export, dashboard, exit) and undo/redo themselves are excluded via the isMutatingCommand() helper so that they do not overwrite the saved snapshot:

Command command = addressBookParser.parseCommand(commandText);
if (isMutatingCommand(command)) {
    model.saveCurrentState();
}
commandResult = command.execute(model);

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

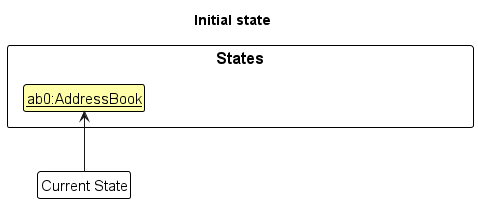

Step 1. The user launches the application. Both previousAddressBook and redoAddressBook are null. There is nothing to undo or redo.

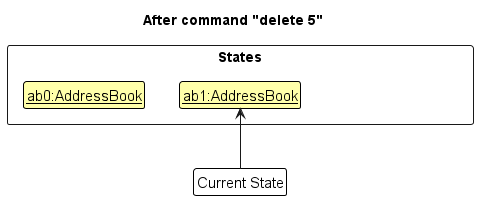

Step 2. The user executes delete 5 to delete the 5th person. Before the command executes, LogicManager calls Model#saveCurrentState(), which saves a copy of the current address book into previousAddressBook and clears redoAddressBook. The delete command then executes normally.

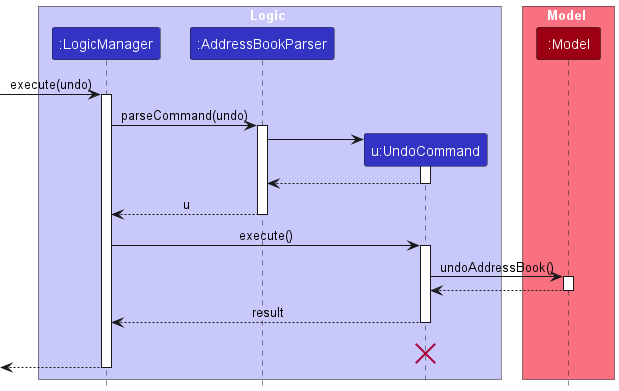

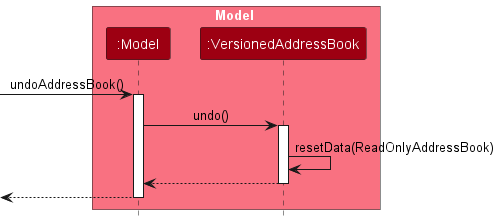

Step 3. The user decides the delete was a mistake and executes undo. The UndoCommand calls Model#undoAddressBook(), which:

1. Saves the current (post-delete) state into redoAddressBook
2. Restores previousAddressBook as the active address book
3. Sets previousAddressBook to null

The deleted person is now restored.

Step 4. The user changes their mind again and executes redo. The RedoCommand calls Model#redoAddressBook(), which:

1. Saves the current (restored) state into previousAddressBook
2. Restores redoAddressBook as the active address book
3. Sets redoAddressBook to null

The person is deleted again.

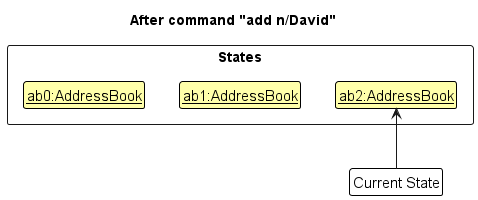

Step 5. The user executes a new mutating command (e.g. add n/David). LogicManager calls Model#saveCurrentState(), which saves the current state into previousAddressBook and clears redoAddressBook. Since a new command was executed, redo is no longer available.

Note: Only one level of undo/redo is supported. This is a deliberate simplification – teachers primarily need a safety net for the most recent accidental action (e.g. accidental clear or delete), not a full multi-step history.

Note: If a command fails during execution (e.g. invalid index), the state was already saved by LogicManager before execution. However, since the address book was not actually modified, the saved snapshot is identical to the current state, so an undo would have no visible effect.

Design considerations:

Aspect: How undo & redo executes:

• Alternative 1 (current choice): Saves a single snapshot of the entire address book before each mutating command.
  • Pros: Simple to implement. No changes required to individual commands. No coordination needed with other developers adding new commands.
  • Cons: Only supports one level of undo/redo. Uses memory proportional to the size of the address book for each snapshot.
• Alternative 2: Full versioned address book with a state history list and pointer (as in AB4).
  • Pros: Supports multi-step undo/redo.
  • Cons: More complex to implement. Every mutating command must call commitAddressBook(), requiring coordination across the team. Higher memory usage with many states stored.
• Alternative 3: Individual command knows how to undo/redo by itself (command pattern).
  • Pros: Uses less memory (e.g. for delete, only saves the deleted person).
  • Cons: Every command must implement its own undo logic correctly. High implementation burden and risk of bugs.

Alternative 1 was chosen because it provides the most important safety net (recovering from the last mistake) with minimal implementation complexity and zero impact on other team members’ features.

[Proposed] Data archiving

TeacherBook CLI does not include a dedicated data-archiving feature in v1.6.

At the moment, the application keeps all contacts in a single local JSON data file and supports CSV export/import for backup or archival workflows outside the app.

A future version could introduce a dedicated archive command that moves inactive contacts into a separate archive file while preserving their class, tags, remarks, and follow-up flags.

Import/Export CSV feature

Implementation

The import/export feature is implemented in the Logic component using two commands:

• ImportCommand + ImportCommandParser
• ExportCommand + ExportCommandParser

Both commands are routed in AddressBookParser and executed by LogicManager, after which the normal autosave pipeline persists the updated AddressBook state.

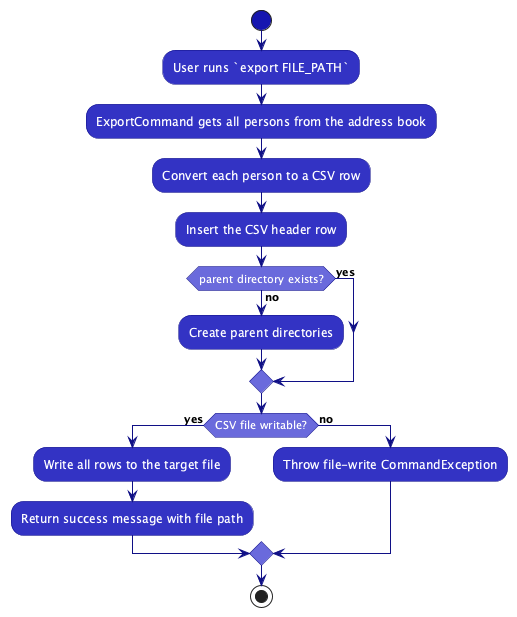

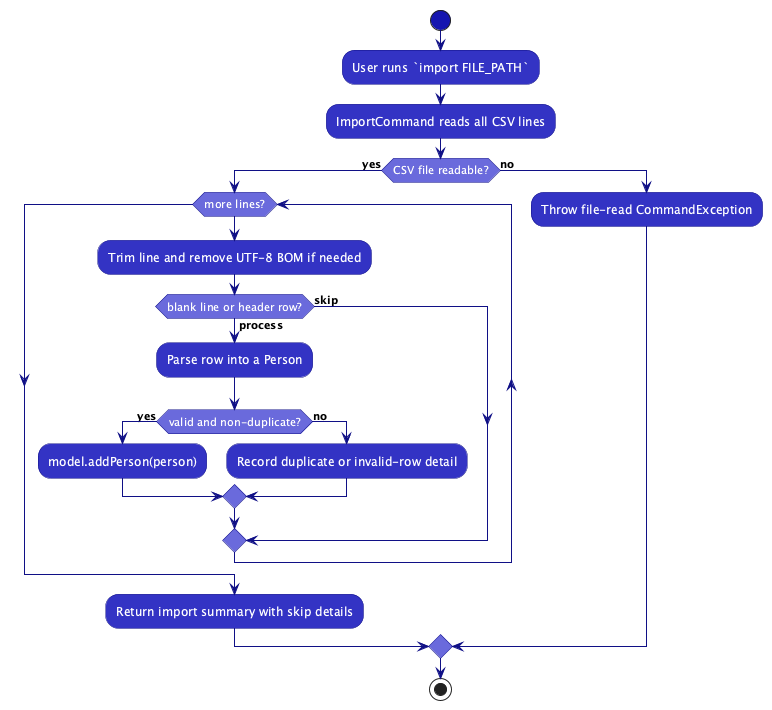

The activity diagrams below summarize the main control flow for the import and export commands.

Import (import FILE_PATH)

• Reads the CSV file line by line.
• Supports quoted CSV values (including commas in addresses).
• Ignores a header row if the first cell is name.
• Known limitation: the header detection is currently string-based. If the first data row starts with name, that row can be skipped as a header without a row-level skip reason.
• Converts each row into a Person using existing parser utilities (ParserUtil) so field validation remains consistent with add.
• Duplicate detection uses Model#hasPerson, which relies on identity (Person#isSamePerson), i.e. same name.
• Invalid or duplicate rows are skipped and summarized in the command result.
• Up to 10 row-level skip reasons are included to help users debug malformed input.
• Strips UTF-8 BOM from the start of a line to handle CSVs exported from spreadsheet tools.

Export (export FILE_PATH)

• Serializes all persons from model.getAddressBook().getPersonList() into CSV.
• Writes header name,phone,email,address,class,tags.
• Escapes CSV values containing commas, quotes, or newlines.
• Exports tags as a semicolon-separated list.
• Creates parent directories if they do not exist.

Design considerations

• Validation reuse: import uses existing domain parsers instead of custom validators to avoid duplicated validation logic.
• Partial success behavior: invalid rows are skipped while valid rows are imported, improving usability for large datasets with small data issues.
• User feedback: row-level skip reasons are included for troubleshooting but capped for readability.

Manual testing

Import

1. Run: import C:\data\contacts.csv with a valid file.
   • Expected: valid rows are added and summary message shows imported count.
2. Include invalid rows (e.g. invalid phone/email).
   • Expected: rows are skipped with reasons in the result message.
3. Include a duplicate name.
   • Expected: duplicate row is skipped with a duplicate reason.

Export

1. Run: export C:\data\out.csv.
   • Expected: CSV file is created with header and all current contacts.
2. Export to a nested non-existing folder.
   • Expected: directories are created and export succeeds.
3. Export to an invalid/inaccessible path.
   • Expected: command fails with a file write error message.

Unified sort feature

Implementation

Sorting is implemented using a single command:

• SortCommand (command word: sort)

AddressBookParser parses optional sort arguments and constructs SortCommand with a sort field:

• sort or sort address -> SortField.ADDRESS
• sort name -> SortField.NAME

SortCommand then selects the corresponding comparator and calls Model#sortPersonList(...).

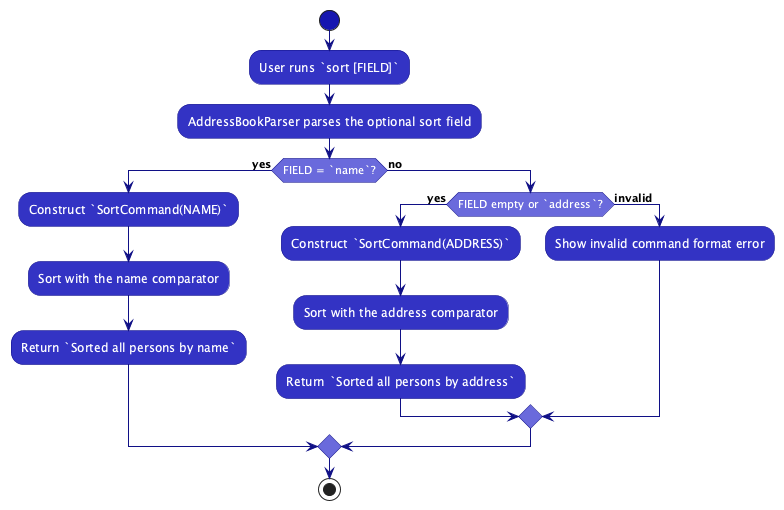

The activity diagram below summarizes how sort chooses the requested field and applies the corresponding comparator.

Design considerations

• Single-command design: using one command with a field parameter avoids duplicate command classes for each sort mode.
• Extensibility: adding future sort fields (e.g. phone, class) only requires extending the enum/parser branch and comparator mapping.
• Backward compatibility: sort continues to work with default address sorting.

Manual testing

1. Run sort.
   • Expected: persons are sorted by address.
2. Run sort address.
   • Expected: same behaviour as sort.
3. Run sort name.
   • Expected: persons are sorted by name.
4. Run sort invalidField.
   • Expected: invalid command format error with sort usage.

Flag, Unflag, and Dashboard feature

Implementation

The flag/unflag/dashboard feature allows teachers to mark students who need follow-up and view a consolidated summary. It is implemented using three commands:

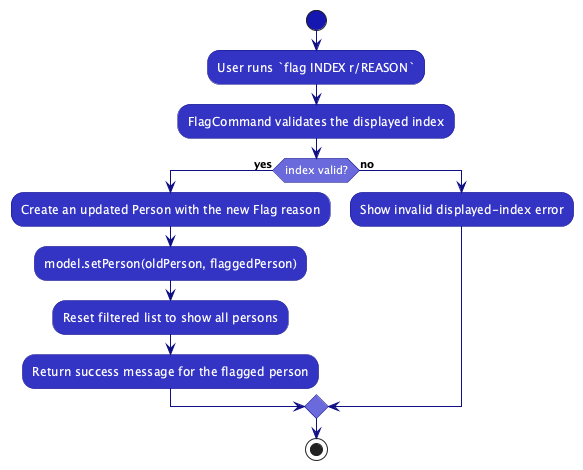

• FlagCommand + FlagCommandParser — marks a person as flagged with a required reason (via r/REASON).
• UnflagCommand + UnflagCommandParser — removes the flag from a person.

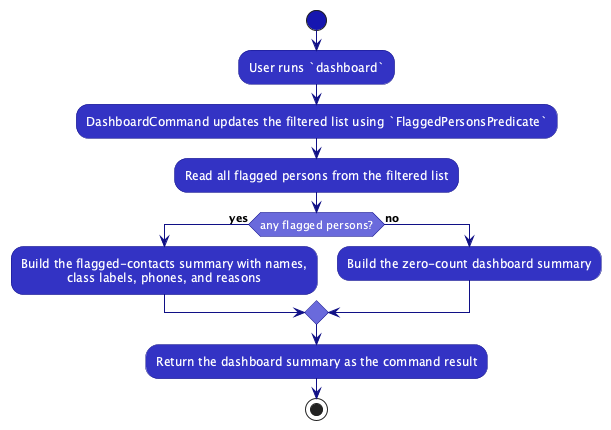

• DashboardCommand — filters the person list to show only flagged persons and displays a formatted summary.

Each Person has an optional Flag field. When a person is flagged, the Flag object stores the reason string. The FlaggedPersonsPredicate is used by DashboardCommand to filter the displayed list to only flagged contacts.

Flagging and unflagging are mutating commands (they modify person data), so they are compatible with the undo/redo system. DashboardCommand is read-only (it only filters the view) and does not affect undo state.

The activity diagrams below summarize the main command flow for flag and dashboard.

Design considerations

• Separate flag/unflag commands: Using distinct commands (rather than a toggle) makes the intent explicit and avoids accidental unflagging.
• Reason required for flag: Requiring a reason ensures the dashboard summary is useful — teachers can see at a glance why each student needs attention.
• Dashboard as a filter: The dashboard command reuses the existing filtered list mechanism, so the UI updates naturally without a separate view.

Manual testing

1. Flag a person with a reason.
   • Run: flag 1 r/Missing consent form
   • Expected: The 1st person is flagged. A visual indicator appears on their card. Status message confirms the flag.
2. Flag a person who is already flagged.
   • Run: flag 1 r/New reason
   • Expected: The flag reason is updated to the new reason.
3. Flag without a reason.
   • Run: flag 1 or flag 1 r/
   • Expected: Error message indicating a reason must be provided.
4. Unflag a flagged person.
   • Run: unflag 1
   • Expected: The flag is removed. The visual indicator disappears. Status message confirms the unflag.
5. Unflag a person who is not flagged.
   • Run: unflag 1 (on an unflagged person)
   • Expected: Error message indicating the person is not flagged.
6. View the dashboard.
   • Prerequisites: At least one person is flagged.
   • Run: dashboard
   • Expected: The person list filters to show only flagged persons. The result display shows a formatted summary with each flagged person’s name and reason.
7. View the dashboard with no flagged persons.
   • Prerequisites: No persons are flagged.
   • Run: dashboard
   • Expected: An empty list is displayed. The summary shows 0 flagged contacts.
8. Undo a flag operation.
   • Run: flag 1 r/test then undo
   • Expected: The flag is removed (reverted to the pre-flag state).

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

Appendix: Requirements

Product scope

Target user profile:

• is a teacher who manages contact details of many students and their parents
• needs quick access to student and parent contact information during lessons, meetings, or emergencies
• prefers desktop applications over mobile apps or web portals
• is comfortable using command-line interfaces
• can type quickly and prefers keyboard-based interactions over mouse-driven workflows

Value proposition: TeacherBook CLI allows teachers to manage and retrieve student and parent contact information faster than traditional spreadsheet or GUI-based tools by using simple command-line commands optimised for speed and efficiency.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Use cases

(For all use cases below, the System is the TeacherBook CLI and the Actor is the user, unless specified otherwise)

Use case: Delete a person

MSS

1. User requests to list persons
2. TeacherBook CLI shows a list of persons
3. User requests to delete a specific person in the list

4. TeacherBook CLI deletes the person

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. TeacherBook CLI shows an error message.

    Use case resumes at step 2.

Use case: Add a person

MSS

1. User requests to add a new person with their contact details.

2. TeacherBook CLI adds the person.

   Use case ends.

Extensions

• 1a. The person already exists in the address book.

  • 1a1. TeacherBook CLI shows an error message indicating duplicate entry.

    Use case resumes at step 1.

• 1b. The input format is invalid (e.g., missing required fields).

  • 1b1. TeacherBook CLI shows an error message with the correct command format.

    Use case resumes at step 1.

Use case: Search for a person

MSS

1. User requests to search for persons by name.

2. TeacherBook CLI displays a filtered list of matching persons.

   Use case ends.

Extensions

• 1a. The search query is empty.

  • 1a1. TeacherBook CLI shows an error message.

    Use case resumes at step 1.

• 2a. No matches are found.

  • 2a1. TeacherBook CLI shows an empty filtered list and a zero-count result message.

    Use case ends.

Use case: Edit a person

MSS

1. User requests to edit an existing person’s details.

2. TeacherBook CLI updates the person’s information.

   Use case ends.

Extensions

• 1a. The given index is invalid.

  • 1a1. TeacherBook CLI shows an error message.

    Use case resumes at step 1.

• 1b. The edited details conflict with an existing person (duplicate).

  • 1b1. TeacherBook CLI shows an error message.

    Use case resumes at step 1.

Use case: Clear all entries

MSS

1. User requests to clear all persons from the address book.

2. TeacherBook CLI clears all entries.

   Use case ends.

Extensions

• 1a. The address book is already empty.

  • 1a1. TeacherBook CLI confirms the address book is already empty.

    Use case ends.

Use case: Export data

MSS

1. User requests to export the address book data to a file.

2. TeacherBook CLI saves the data to the specified file location.

   Use case ends.

Extensions

• 1a. The file path is invalid or inaccessible.

  • 1a1. TeacherBook CLI shows an error message.

    Use case resumes at step 1.

• 2a. An error occurs during export (e.g., disk full).

  • 2a1. TeacherBook CLI shows an error message.

    Use case ends.

Use case: Import contacts from CSV

MSS

1. User requests to import contacts from a CSV file.
2. TeacherBook CLI reads the file and imports all valid, non-duplicate contacts.

3. TeacherBook CLI shows a summary of the import result.

   Use case ends.

Extensions

• 1a. The file path is invalid or the file cannot be read.

  • 1a1. TeacherBook CLI shows an error message.

    Use case resumes at step 1.

• 2a. Some rows are invalid or duplicates.

  • 2a1. TeacherBook CLI skips those rows and reports the skipped-row reasons in the result summary.

    Use case resumes at step 3.

Use case: Filter persons by class

MSS

1. User requests to filter persons by class.

2. TeacherBook CLI displays only persons from the specified class.

   Use case ends.

Extensions

• 1a. The class input is missing or invalid.

  • 1a1. TeacherBook CLI shows an error message.

    Use case resumes at step 1.

• 2a. No persons match the specified class.

  • 2a1. TeacherBook CLI displays an empty filtered list.

    Use case ends.

Use case: Sort persons

MSS

1. User requests to sort the displayed persons by a supported field.

2. TeacherBook CLI reorders the person list according to that field.

   Use case ends.

Extensions

• 1a. The user provides an unsupported sort field.

  • 1a1. TeacherBook CLI shows an error message with the correct command format.

    Use case resumes at step 1.

Use case: Add tags to a person

MSS

1. User requests to add one or more tags to a person.

2. TeacherBook CLI adds the given tags to that person’s existing tags.

   Use case ends.

Extensions

• 1a. The given index is invalid.

  • 1a1. TeacherBook CLI shows an error message.

    Use case resumes at step 1.

Use case: Add or clear a remark

MSS

1. User requests to add or clear a remark for a person.

2. TeacherBook CLI updates that person’s remark.

   Use case ends.

Extensions

• 1a. The given index is invalid or the input format is invalid.

  • 1a1. TeacherBook CLI shows an error message.

    Use case resumes at step 1.

Use case: Flag a person for follow-up

MSS

1. User requests to flag a person with a follow-up reason.

2. TeacherBook CLI saves the follow-up reason for that person.

   Use case ends.

Extensions

• 1a. The given index is invalid or the reason is missing.

  • 1a1. TeacherBook CLI shows an error message.

    Use case resumes at step 1.

Use case: Remove a follow-up flag

MSS

1. User requests to remove the follow-up flag from a person.

2. TeacherBook CLI removes the flag from that person.

   Use case ends.

Extensions

• 1a. The given index is invalid.

  • 1a1. TeacherBook CLI shows an error message.

    Use case resumes at step 1.

Use case: View flagged contacts in the dashboard

MSS

1. User requests to view the dashboard.

2. TeacherBook CLI shows a summary of all currently flagged contacts and filters the displayed list to them.

   Use case ends.

Extensions

• 2a. There are no flagged contacts.

  • 2a1. TeacherBook CLI shows an empty flagged list with a zero-count summary.

    Use case ends.

Use case: Undo the previous change

MSS

1. User requests to undo the most recent mutating command.

2. TeacherBook CLI restores the address book to its previous state.

   Use case ends.

Extensions

• 1a. There is no previous mutating command to undo.

  • 1a1. TeacherBook CLI shows an error message.

    Use case ends.

Use case: Redo the previous undo

MSS

1. User requests to redo the most recently undone command.

2. TeacherBook CLI reapplies the reverted change.

   Use case ends.

Extensions

• 1a. There is no previously undone command to redo.

  • 1a1. TeacherBook CLI shows an error message.

    Use case ends.

Use case: View command help

MSS

1. User requests help for all commands.

2. TeacherBook CLI opens the help window and shows the full command summary.

   Use case ends.

Extensions

• 1a. The user requests help for a specific command word.

  • 1a1. TeacherBook CLI shows the usage for that command in the result display.

    Use case ends.

• 1b. The specified command word is not recognized.

  • 1b1. TeacherBook CLI shows an error message.

    Use case resumes at step 1.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 17 or above installed.
2. Should be able to hold up to 1000 persons without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. Contact information should be automatically saved to local storage and remain intact between sessions.
5. The data storage file should remain reasonably small (e.g. under 5 MB for 1000 contacts).
6. The system should provide clear error messages when commands are invalid.
7. Core contact-management features should work without an Internet connection.
8. Common commands such as add, find, filter, and delete should respond within a second for typical usage on an address book of up to 1000 persons.
9. If the data file is missing or corrupted, the application should fail gracefully without crashing at startup.
10. User preferences such as window size and window position should persist across sessions.
11. Contact data should remain on the local machine unless the user explicitly exports it.

Glossary

• Contact: A stored person entry representing a student or parent.
• Mainstream OS: Windows, Linux, Unix, MacOS
• Private contact detail: A contact detail that is not meant to be shared with others
• Class: A student’s school class or cohort (e.g. 3A, 4B). Used to group and filter contacts.
• Tag: A short label attached to a contact for categorisation (e.g. friend, exco). A contact can have multiple tags.
• Remark: A free-text note attached to a contact for recording non-structured information (e.g. medical alerts, pickup arrangements).
• Flag: A marker on a contact indicating the student requires follow-up, accompanied by a reason (e.g. missing consent form).
• Dashboard: A summary view showing all currently flagged contacts and their reasons.
• CSV: Comma-Separated Values, a plain-text file format used for importing and exporting contact data.

Appendix: Effort

TeacherBook CLI extends AB3 into a teacher-focused contact manager. Compared with AB3’s generic address book, this project had to support school-specific workflows such as class-based filtering, follow-up flagging, a flagged-contacts dashboard, CSV import/export, and richer contact metadata like class, remarks, and flags.

The main implementation effort went into adapting AB3’s command architecture and data model without losing consistency or usability. In particular, the team had to integrate teacher-specific workflows into the existing parser and command structure, keep undo/redo behavior coherent across the newer commands, and ensure the UG and DG continued to match the shipped product as the feature set grew.

A significant amount of base infrastructure was reused from AB3, including the overall architecture, storage pipeline, UI shell, and testing scaffolding. That reuse reduced effort on application setup and allowed the team to focus most of its work on domain adaptation, command behavior, diagrams, and teacher-oriented documentation.

The resulting product supports an end-to-end teacher workflow: importing contact lists, filtering by class, flagging students who need follow-up, reviewing those flagged contacts through the dashboard, and exporting the data back to CSV.

Appendix: Planned Enhancements

Team size: 5

This appendix tracks known feature flaws that are intentionally not fixed in v1.6, together with proposed near-term fixes.

1. Detect CSV headers using full-column matching
   • Current flaw: import treats the first row as a header whenever the first cell is name, so a legitimate data row such as name,91234567,user@example.com,... can be skipped wrongly.
   • Planned fix: Treat the first row as a header only when the leading columns match the expected header pattern (e.g. name,phone,email,address) rather than matching just the first cell.
2. Report mistaken CSV header skips explicitly
   • Current flaw: When the first row is skipped because it resembles a header, the user does not receive a row-specific skip reason in the import summary.
   • Planned fix: Show an explicit row-level reason such as Row 1 skipped: row detected as CSV header so the skip is transparent to the user.
3. Support deleting a specific tag
   • Current flaw: Tag editing is all-or-nothing. Using edit 1 t/ clears all tags, and there is no way to remove just one specific tag while keeping the others.
   • Planned fix: Implement targeted tag modification/deletion for specific tags (e.g. remove one tag while preserving the rest), instead of only supporting all-or-nothing tag clearing.
4. Reject oversized delete ranges earlier
   • Current flaw: delete range inputs are expanded before they are validated against the displayed list, so extremely large ranges can hurt responsiveness before the command is rejected.
   • Planned fix: Validate the range bounds before materializing all indices, so inputs such as delete 1-10000000 fail immediately with a clear error message.
5. Restore the minimized help window when help is triggered again
   • Current flaw: If the help window is minimized and the user runs help again, the original help window stays minimized and no visible help window appears.
   • Planned fix: Detect when the help window is minimized and restore it before focusing it, so repeated help actions always bring a visible help window to the foreground.

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Note: These instructions only provide a starting point for testers to work on; testers are expected to do more exploratory testing.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

3. Exiting the app

   1. Type exit in the command box and press Enter.
      Expected: The application closes. The data file addressbook.json is saved to disk.

Deleting a person

1. Deleting a person while all persons are being shown

   1. Prerequisites: List all persons using the list command. Multiple persons in the list.

   2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message. Timestamp in the status bar is updated.

   3. Test case: delete 0
      Expected: No person is deleted. Error details shown in the status message. Status bar remains the same.

   4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Adding a person

1. Adding a valid contact

   1. Prerequisites: The contact does not already exist in the address book.

   2. Test case: add n/Test User p/91234567 e/test@example.com a/123 Test Street
      Expected: A new contact is added to the list. Status message shows the new person’s details.

   3. Test case: Repeat the same add command again
      Expected: No duplicate is created. Error message shows that the person already exists.

   4. Test case: add n/Test User p/abc e/test@example.com a/123 Test Street
      Expected: No person is added. Error details shown in the status message.

Editing a person

1. Editing an existing contact

   1. Prerequisites: List all persons using the list command. Multiple persons in the list.

   2. Test case: edit 1 p/90000000
      Expected: The 1st contact’s phone is updated. Status message shows the edited person’s details.

   3. Test case: edit 1 t/friend
      Expected: The 1st contact’s tag set is replaced with friend.

   4. Test case: edit 0 p/90000000 and edit 1
      Expected: No contact is edited. Error details shown in the status message.

Tagging a person

1. Cumulatively adding tags to an existing person

   1. Prerequisites: List all persons using the list command. The 1st person has no existing tags.

   2. Test case: tag 1 t/friend
      Expected: The 1st person now has the tag friend. Status message shows the tagged person’s details.

   3. Test case: tag 1 t/colleague t/exco
      Expected: The 1st person now has tags friend, colleague, and exco (cumulative — friend is preserved).

   4. Test case: tag 1 t/friend
      Expected: No change (the tag set already contains friend). Tagged person’s details still shown.

   5. Test case: tag 0 t/friend and tag 1
      Expected: No tag is added. Error details shown in the status message.

Finding contacts by name

1. Finding contacts using name keywords

   1. Prerequisites: At least two contacts exist whose names contain different searchable words.

   2. Test case: find Alex
      Expected: Only contacts whose names contain the whole-word keyword Alex are shown. Status message shows the number of persons listed.

   3. Test case: find alex
      Expected: Same result as find Alex because keyword matching is case-insensitive.

   4. Test case: find NoSuchPerson
      Expected: An empty filtered list is shown. Status message shows 0 persons listed!.

   5. Test case: find
      Expected: No search is performed. Error details shown in the status message.

Adding/clearing a remark

1. Setting and clearing a remark on an existing person

   1. Prerequisites: List all persons using the list command. Multiple persons in the list.

   2. Test case: remark 1 r/Allergic to peanuts
      Expected: The 1st person’s remark card now displays “Allergic to peanuts”. Status message shows the updated person.

   3. Test case: remark 1 r/
      Expected: The 1st person’s remark is cleared (displayed as - or empty). Status message confirms the update.

   4. Test case: remark 0 r/test and remark 1 (no r/ prefix)
      Expected: No remark is set. Error details shown in the status message.

Filtering persons by class

1. Filtering the list to show only a specific class

   1. Prerequisites: At least two persons exist with class 3A and at least one person with a different class.

   2. Test case: filter c/3A
      Expected: Only persons in class 3A are shown. Status message shows the number of persons listed.

   3. Test case: filter c/3a
      Expected: Same result as filter c/3A (case-insensitive matching).

   4. Test case: filter c/9Z (a class with no members)
      Expected: An empty list is displayed. Status message shows 0 persons listed!.

   5. Test case: filter (no class) and filter c/
      Expected: No filtering is applied. Error details shown in the status message.

   6. After any filter, run list to restore the full list.

Exporting contacts to CSV

1. Exporting all persons to a CSV file

   1. Prerequisites: At least one person exists in the address book.

   2. Test case: export contacts.csv
      Expected: A file contacts.csv is created in the current working directory. Status message shows Exported N persons to: contacts.csv. Open the file to confirm the header row and one row per person.

   3. Test case: export ./data/backup.csv (subdirectory that does not exist)
      Expected: The data directory is created and backup.csv is written into it. Status message confirms the export.

   4. Test case: export /root/forbidden.csv (Linux/macOS) or export C:\Windows\System32\contacts.csv (Windows) — a path the app cannot write to
      Expected: No file is created. Error message indicates the file could not be written.

   5. Test case: export (no path)
      Expected: No file is created. Error details shown in the status message.

Importing contacts from CSV

1. Importing contacts from a CSV file

   1. Prerequisites: Prepare a CSV file with a header row, at least one valid contact row, one duplicate-name row, and one invalid row.

   2. Test case: import sample.csv
      Expected: Valid rows are imported. The result summary shows how many rows were imported, skipped as duplicates, and skipped as invalid.

   3. Test case: Use a CSV row with a quoted address containing commas, then run import sample.csv
      Expected: The row is imported successfully, and the full address (including commas) is preserved.

   4. Test case: import missing-file.csv
      Expected: No contacts are imported. Error message indicates the file could not be read.

   5. Test case: import (no path)
      Expected: No import occurs. Error details shown in the status message.

Sorting contacts

1. Sorting the full contact list

   1. Prerequisites: At least three contacts exist with different names and addresses.

   2. Test case: sort
      Expected: Contacts are sorted by address. Status message shows Sorted all persons by address.

   3. Test case: sort name
      Expected: Contacts are sorted by name. Status message shows Sorted all persons by name.

   4. Test case: sort phone
      Expected: No sorting is applied. Error details shown in the status message.

Help command

1. Viewing general and command-specific help

   1. Test case: help
      Expected: The help window opens and displays the full command summary.

   2. Test case: help add
      Expected: The help window remains closed, and the result box shows the usage for add.

   3. Test case: help ADD
      Expected: Same result as help add because help targets are case-insensitive.

   4. Test case: help unknowncommand
      Expected: No help content is shown. Error details shown in the status message.

Flagging, unflagging, and dashboard

1. Flagging a contact for follow-up

   1. Prerequisites: List all persons using the list command. Multiple persons in the list.

   2. Test case: flag 1 r/Missing consent form
      Expected: The 1st person becomes flagged. Status message shows the updated person.

   3. Test case: flag 0 r/Test and flag 1
      Expected: No person is flagged. Error details shown in the status message.

2. Removing a follow-up flag

   1. Prerequisites: At least one contact is already flagged.

   2. Test case: unflag 1
      Expected: The selected flagged contact is unflagged. Status message shows the updated person.

   3. Test case: unflag 1 on a contact that is not flagged
      Expected: No change is made. Error message shows This contact is not flagged.

3. Viewing the flagged-contacts dashboard

   1. Prerequisites: At least two contacts are flagged.

   2. Test case: dashboard
      Expected: The displayed list is filtered to flagged contacts, and the result box shows the flagged-contact summary.

   3. Test case: dashboard when no contacts are flagged
      Expected: An empty list is shown, and the result box reports zero flagged contacts.

Listing and clearing contacts

1. Listing all contacts

   1. Prerequisites: The list is currently filtered by another command such as find, filter, or dashboard.

   2. Test case: list
      Expected: The full contact list is shown again. Status message shows Listed all persons.

2. Clearing all contacts

   1. Prerequisites: At least one contact exists in the address book.

   2. Test case: clear
      Expected: All contacts are removed from the address book. Status message shows Address book has been cleared!.

   3. Test case: clear extraText
      Expected: Same result as clear, because extra parameters are ignored for this command.

Undoing and redoing a command

1. Undoing the most recent mutating command

   1. Prerequisites: List all persons using the list command. Multiple persons in the list.

   2. Test case: delete 1 followed by undo
      Expected: The deleted person is restored. Status message shows Undo successful!.

   3. Test case: add n/Test User p/12345678 e/test@example.com a/123 Test St followed by undo
      Expected: The newly added person is removed. Status message shows Undo successful!.

   4. Test case: undo immediately after launching the app (no prior mutating command)
      Expected: Nothing changes. Error message shows Nothing to undo!.

2. Redoing an undone command

   1. Prerequisites: A mutating command was just undone (e.g. delete 1 then undo).

   2. Test case: redo
      Expected: The previously undone change is re-applied. Status message shows Redo successful!.

   3. Test case: After undo, run any other mutating command (e.g. add ...) and then redo
      Expected: Redo fails. Error message shows Nothing to redo! (because executing a new mutating command clears the redo state).

Saving data

1. Dealing with missing/corrupted data files

   1. Test case: delete data/addressbook.json before launching the app.
      Expected: The app still starts successfully and shows the sample contacts because no saved address book was found.

   2. Test case: replace the contents of data/addressbook.json with invalid JSON such as { invalid json ], then launch the app.
      Expected: The app still starts successfully with an empty address book because the saved data could not be loaded.

   3. Test case: keep data/addressbook.json as valid JSON syntax but change a field to an invalid value (e.g. an invalid email), then launch the app.
      Expected: The app still starts successfully with an empty address book because the saved data contains illegal values.

2. Persisting changes to disk

   1. Prerequisites: Launch the app from a clean test folder.

   2. Test case: run add n/Test User p/12345678 e/test@example.com a/123 Test St and close the app.
      Expected: data/addressbook.json is created or updated, and the added contact is present after relaunching the app.

   3. Test case: run delete 1 or clear, close the app, and relaunch the app.
      Expected: The deletion is preserved after relaunch because data-changing commands are saved automatically.
